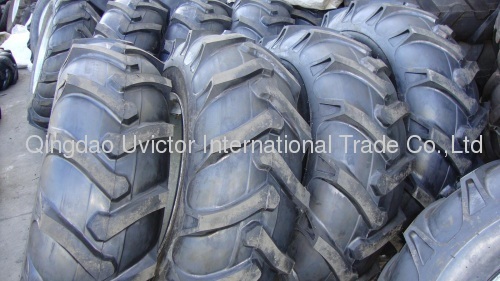

bias agricultural tire 18.4-38 ,18.4-30 ,16.9-34, 16.9-30, 14.9-30 ,14.9-38,7.50-16,etc
Feature & Benefits
1 the adoption of composite tread has reduced heat-producing ,enhances the service durability
2 Special deep pattern design improves the traction and braking performance
3 extra deep pattern design prevents puncture and ensure maximum mileage
4 block shoulder design helps for super heat dispersion
5 strengthened bead toe reduces the damage possibility in order to ensure good security.
6 strengthened steel belt protect the tire body from puncture
7 extra deep tread pattern can increase mileage 20%
BIAS AGRICULTURAL TYRE :
1.The traction tyre tire endows with a good drive power and hold power.
2.The reasonable pattern tilt angle guarantees a good self-cleaning capacity.
3.The quality tread compound has enhanced the tire's cut resistance performance
BIAS AGRICULTURAL TYRE |
SIZE | PR | S.RIM | Section width(mm) | Diameter(mm) | Max Load(KG) | Kpa | 1x40HQ |
20.8-38 | 12 | W18L | 528 | 1835 | 4000 | 200 | 35 |
18.4-38 | 10 | W16L | 467 | 1755 | 3165 | 180 | 50 |
18.4-30 | 10 | W16L | 467 | 1500 | 2815 | 180 | 75 |
18.4-34 | 10 | W16L | 467 | 1655 | 2990 | 180 | 60 |
15.5-38 | 10 | W13L | 391 | 1549 | 1760 | 200 | 95 |
11.2-38 | 10 | 10 | 284 | 1448 | 1180 | 220 | 105 |
16.9-30 | 10 | W13L | 447 | 1499 | 2455 | 200 | 80 |
16.9-34 | 10 | W13L | 429 | 1585 | 2605 | 200 | |
16.9-28 | 10 | W15L | 430 | 1435 | 2380 | 200 | 100 |
14.9-28 | 8 | W13 | 378 | 1365 | 1880 | 180 | 130 |
14.9-24 | 8 | W15 | 378 | 1265 | 1530 | 170 | 180 |
13.6-28 | 8 | W12 | 345 | 1310 | 1645 | 200 | 150 |
13.6-24 | 10 | W12 | 345 | 1210 | 1790 | 250 | 180 |
12.4-28 | 8 | W11 | 315 | 1260 | 1510 | 230 | 160 |
12.4-24 | 8 | W11 | 315 | 1160 | 1415 | 230 | 210 |
11.2-28 | 10 | W10 | 285 | 1205 | 1490 | 310 | 180 |
11.2-24 | 8 | W10 | 285 | 1105 | 1225 | 240 | 260 |
9.5-24 | 8 | W8 | 240 | 1050 | 1110 | 280 | 336 |
9.5-20 | 8 | W8 | 240 | 1050 | 955 | 280 | 400 |
8.3-24 | 6 | W7 | 210 | 995 | 810 | 240 | 420 |
8.3-20 | 6 | W7 | 210 | 895 | 705 | 230 | 400 |
7.50-20 | 6 | 5.50F | 205 | 910 | 760 | 210 | 520 |
7.50-16 | 6 | 5.50F | 205 | 810 | 450 | 210 | 770 |
6.00-12 | 6 | 4.50E | 165 | 640 | 450 | 330 | 1850 |
6.00-16 | 6 | 4.50E | 165 | 745 | 495 | 250 | 1050 |
5.50-17 | 6 | 4.00E | 140 | 750 | 780 | 520 | 1100 |
5.00-12 | 4 | 4.00E | 145 | 590 | 280 | 200 | 1600 |
